| Dimensões | 210 x 257 x 65 mm |
Armazenamento
| 1 x drive HDD/SSD 2.5” (suporta apenas HDD 2.5”) |
Dispositivos
| Slim DVD-RW incluido
|
| CPU | Intel ATOM 330, 1.60Ghz, 533MHz FSB, Dual-core |
| Memoria | 2 sockets 240-pin DIMM para DDR2 667/800 SDRAM até 4GB |
| Chipset | NVIDIA MCP7A-ION Single |
| Inetrface VGA | Grafica Integrada NVIDIA GeForce Series DirectX 10
|
| Video | Memoria partilhada até 512MB |
| Interface Audio | ALC662 6 canais Audio CODEC |
| Interface LAN | 1 x Realtek RTL8111DL PCI-E Gigabit Ethernet LAN e 1 x Wlan |
Slot expansão
| 1 x MINI PCI Express
|
Conectores Internos
| 2 x conectores High Speed USB @ 480 Mbit / s para 4 portas USB 2.0 |
| 1 x CPU Smart Fan, 2 x conectores DC Fan |
| 1 x CD / AUX Audio in & SPEAK Out |
| 1 x RS232 (porta COM) |
| 1 x LPT |
| 1 x GPIO |
| 1 x CIR |
| Conectores Externos | 6 x conectores High Speed USB @ 480 Mbit / s |
| 1 x porta DVI |
| 1 x HDMI |
| 1 x D-Sub 15-pin VGA |
| 1 x RJ45 |
| 1 x Audio I / O |
1 x PS/2 Mouse & Keyboard (conector combinado)
|
| 1 x jack 12V DC-in |
| 2 x WIFI Antena |
Portas Frontais
| 2 portas USB |
Card Reader MS/SD 4-in-1
|
1 receptor CIR
|
| BIOS | Award 8 MB Flash ROM |
| Arrefecimento | 6cm Sleeve Fan x 1 |
Acessórios
| Adaptador 60W AC-DC |
| 1 x Power Cord (EU/UK) |

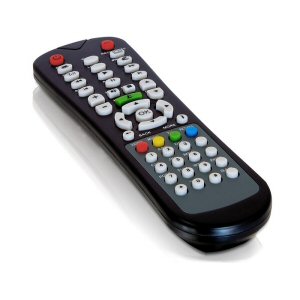

| Controlo Remoto |
