Especificações da Motherboard
|
CPU | Intel® Atom N230 CPU |
Chipset | Intel®945GC Chipset + ICH7 Chipset
FSB 533MHz |
Memoria | 1 * 240-pin DIMM Slot
Supports DDR2 533MHz non-ECC ,un-buffered memory Max. 2GB |
LAN | 1 * Realtek RTL8102E PCI-E 10/100m Ethernet LAN |
Audio | Realtek ALC662 HD Audio CODEC with 6.0 CH |
Armazenamento | 2 * Serial ATA2 3Gb/s
1 * Ultra DMA 133/100 / 66 IDE |
|
USB | Embedded 8 * USB 2.0/1.1 |
BIOS | Award 8MB SPI Flash ROM |
Formato | Mini-ITX Form Factor, M/B 170 x 170mm |

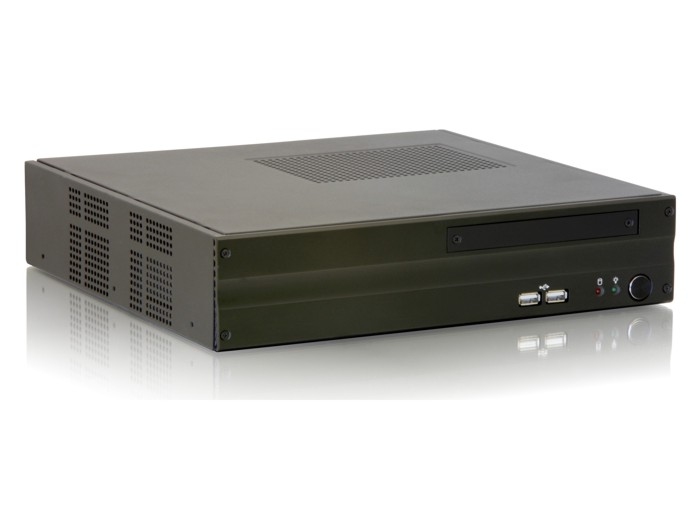

Especificações do Barebone
|
Dimensões
| 273 (W) x 300 (D) x 65 (H )mm |

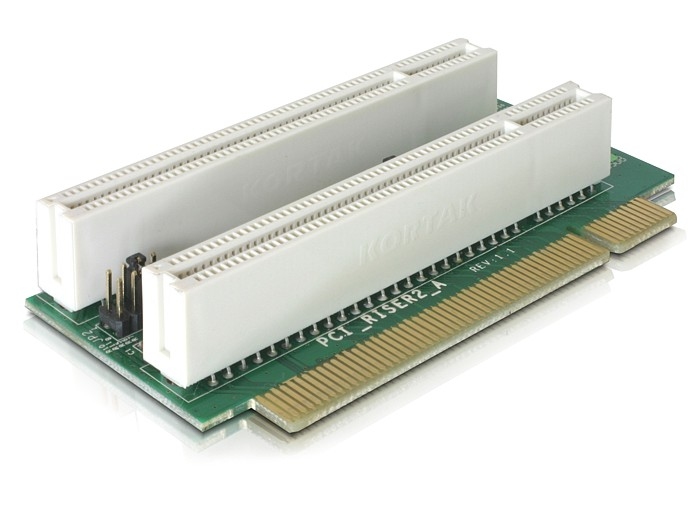

| Slots de Expansão | |
Cores | Black Color |
Arrefecimento | Side: 6cm Fan ( 2Ball Bearing ) x 1 |

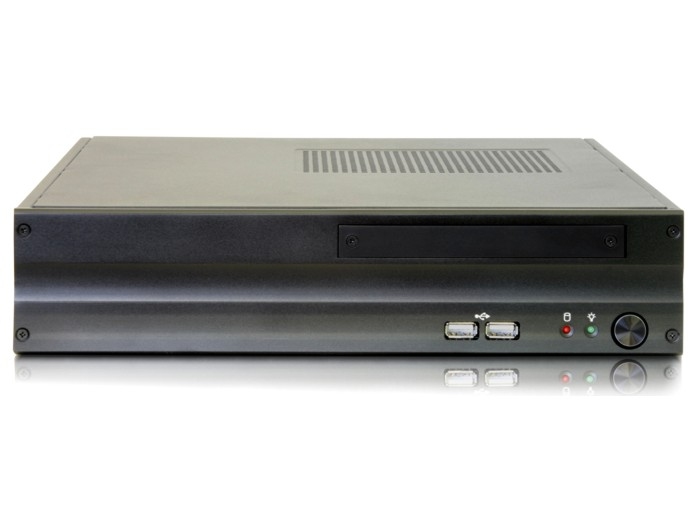

Conexões Frontais | 2 x USB ( V 2.0 )
|
1 x Slim ODD Drive Bay (Optional: 1 x 2.5” Drive Bay)
Hidden: 1 x 3.5” HDD Drive Bay and 1 x 2.5” HDD Drive Bay |
|

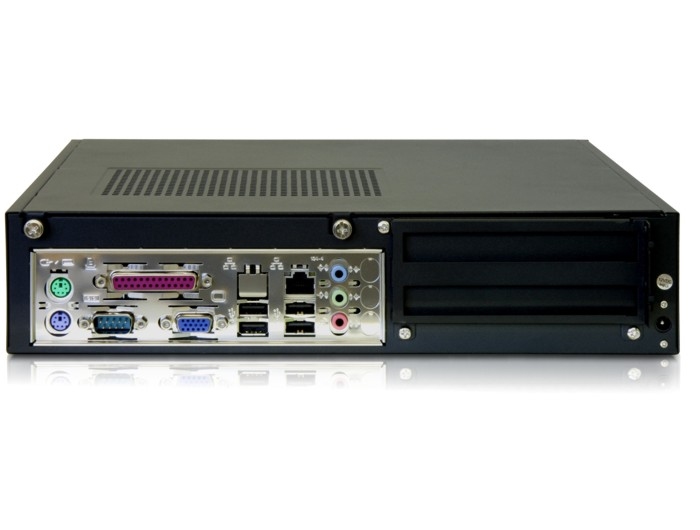

Conexões Traseiras | 4 * USB 2.0/1.1 ports
1 * PS/2 Mouse & 1 * Keyboard Combined connector
1 * RJ-45 ports
1 * Audio I/O ports ( Line-in, Mic and Line-out )
1 * VGA port
1 * COM port
1 * Parallel port for Printer |
Adaptador Corrente | 100W DC-DC Power Converter |
Acessórios Standard
| IDE Converter Card (For Slim ODD Drive) x1
60W AC-DC Adapter x1
Power Cord x1
Stand x4
IDE CABLE x1
SATA CABLE x1 |
Certificados
| CE,FCC para Barebone
CE,FCC,TUV,UL,CCC,CB para Power Adapter |
