CPU

Intel® Atom N230 CPU

Chipset

Intel®945GC Chipset + ICH7 Chipset
FSB 533MHz

Memoria

1 * 240-pin DIMM Slot
Supports DDR2 533MHz non-ECC ,un-buffered memory Max. 2GB

LAN

1 * Realtek RTL8102E PCI-E 10/100m Ethernet LAN

Audio

Realtek ALC662 HD Audio CODEC with 6.0 CH

Armazenamento

2 * Serial ATA2 3Gb/s connectors
1 * Floppy connector
1 * Ultra DMA 133/100 / 66 IDE connector

USB

Embedded 8 * USB 2.0/1.1

BIOS

Award 8MB SPI Flash ROM

Formato

Mini-ITX Form Factor, M/B 170 x 170mm

Especificações do Barebone

Dimensões

210(W) x 258(D) x 65(H)mm

Cores

Black Color

Arrefecimento

Side: 6cm Fan SLEEVE x 1

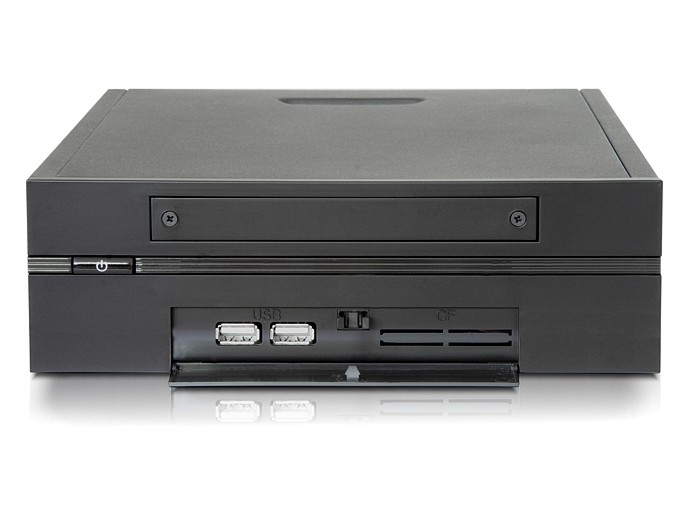

Conexões Frontais

2 x USB(V2.0),

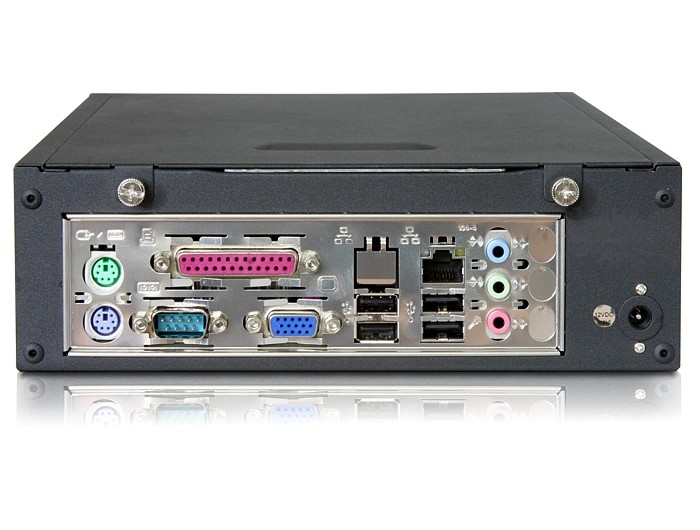

Conexões Traseiras

4 * USB 2.0/1.1 ports
1 * PS/2 Mouse & 1 * Keyboard Combined connector
1 * RJ-45 ports
1 * Audio I/O ports ( Line-in, Mic and Line-out )
1 * VGA port
1 * COM port
1 * Parallel port for Printer

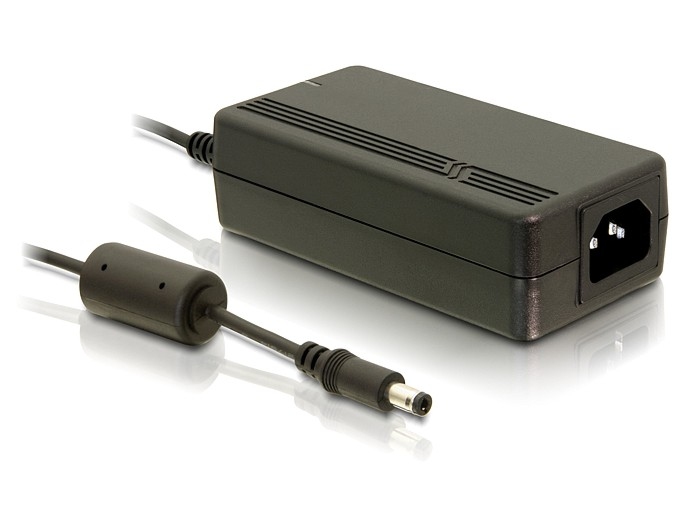

Adaptador Corrente

100W DC-DC Power Converter

Acessórios Standard
