| CPU |
|
|
|
| Intel Core i3, i5, i7 (max. 65W TDP)
Sandy Bridge LGA1155 |
| Chipset / FSB |
|
|
|
| Intel H61 Express |
| RAM |
|
|
|
| 2x Dual-Channel SO-DDR-3 RAM (até 16GB 1066/1333) |
Placa Gráfica
|
|
|
|
| Intel HD Graphics |
| Audio/Video |
|
|
|
| 2.5W Colunas
1.3MP Camêra com microfone digital
|
| TFT |
|
|
|
|
Resolução Native : 1920x1080
Brilho : 300cd/m²
Ângulo de Visão : 160°/160°
Anti Glare
Multi-Touch resistente a 10 dedos
|
| Expansões |
|
|
|
| - 1x Mini-PCIe (ocupada pela placa WLAN em caso opcional) |
Sistema Operativo Suportado
|
|
|
|
| Windows 7 |
| Chassis I/O |
|
|
|
| 2 x USB 2.0
2x Audio (1x Headphone, 1x Mic)
1x 6 in 1 Card Reader |
| Drive bays |
|
|
|
| 1 x 3.5" SATA HDD drive bay
1 x Slim-Line CD/DVD drive bay |
| Mainboard (Thin-ITX) I/O |
|
|
|
| 1 x DC JACK para DC19V
1 x HDMI Out
1 x RJ-45 GbE
4x USB 2.0 |
| Compliance |
|
|
|
| RoHS 2.0, Energy Star, E-Standby, AUS/NZ Compliance, ErP Compliance, EPEAT |
| BOX |
|
|
|

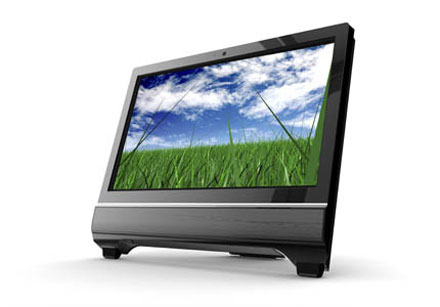

| - ECS G11 AIO-PC Barebone (G11-21ERS6BE-1 with H61H-G11 MB) with Halterung |
|
|
|
|
| - Mini-PCIe WLAN card (802.11 b/g/n) + Antena
- Adaptador AC/DC (19V, 150W) + Comando
|
