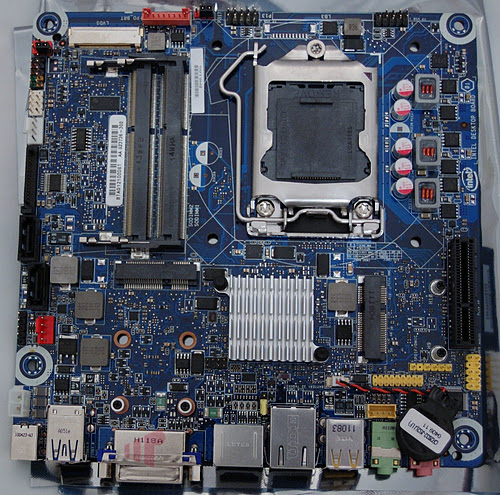

| Form Factor: | Low Profile Mini-ITX 170.18mm [6.7”] x 170.18mm [6.7”] |
|---|
| CPU : | LGA1155 Core i5, i3 / Pentium / Celeron / Xeon – 65W Max TDP |
|---|
| Memoria: | 2x 204-pin DDR3 SO-DIMM 1333/1066 MHz (16GB Max)
|
|---|
| Chipset: | Intel H61 Express Chipset |
|---|
| Video: | 1
HDMI / 1 DVI-I / Flat panel display support, including: Embedded
DisplayPort (eDP) display panel interface LVDS display panel interface |
|---|
| Audio: | - 10-channel (8 + 2) analog audio via Realtek ALC892 audio codec supporting:
- Digital/analog stereo line-out (2-in-1 digital/analog backpanel)
- In-chassis stereo speakers support (internal)
- AV-compliant 7.1 surround support (analog line-level via an internal header)
- Secondary S/PDIF digital audio output (internal)
- DMIC digital microphone input (internal)
- Analog line-in (backpanel)
- Front panel HD Audio/AC’97 headphones/mic support (internal)
- 8-channel (7.1) Intel HD Audio via the HDMI interface
|
|---|
| LAN: | Intel 82579V 10/100/1000 Mbits/s Ethernet Controller |
|---|
| I/O: | 2
USB 3.0 (back panel), 7 USB 2.0 (2 high-current back panel / 5
internal), 3 SATA 3.0 Gb/s (2 internal / 1 eSATA back panel), 1 mSATA
3.0 Gb/s (Full-Mini PCIe slot) |
|---|
| Expansão: | 1 x PCIe 2.0 x4 / 1x Full-/Half-Mini PCIe (including mini-SATA (mSATA) support) / 1x Half-Mini PCIe |
|---|
| Consumer Infrared (CIR): | Nuvoton W83677HG-i I/O CIR (internal header) |
|---|
| Ventoinha: | 2 PWM (4-pin) fan headers |
|---|
