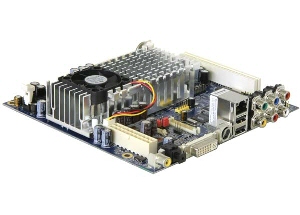

Model	• EPIA - EX 15000EG
Processor	• VIA C7 1.5GHz
Chipsatz	• VIA CX700M2
Systemspeicher	• 1 Slot for DDR2 533 DIMM (to 1GB)
VGA	• VIA UniChromeTM Pro II 3D/2D whit MPEG-2/4 and WMV9 Video
Erweiterungs-Slot	• 1 PCI
Onboard IDE	• 1 UltraDMA 133/100/66/33 Connector
Onboard Serial ATA	• 2 SATA Connector
Onboard Audio	VIA VT1708A High Definition Audio Codec
Onboard TV Out	• VIA VT1625M HDTV Encoder
Onboard 1394	• VIA VT6307S IEEE 1394 Firewire
Connections at Frontside	• 1 DVI Socket • 1 RJ45+USB 2.0 • 1 miniDIN for S-Video Exit • 1 Triple RCA Socket for Composite Video and stereo audio Out • 1 Triple RCA Socket for Component Video Exit • 1 S/PDIF Coaxial Connector • 1 S/PDIF Optical Connector
Anschlüsse auf dem Board	• 2 USB Pin Connectors for 4 externe USB 2.0 Ports • 1 1394 pin Connector for 1 1394 Port • 1 Front-Panel Audio Header for HP-Out and MIC-In • 1 Audio Line-In Header • 1 LPC Header • 1 LVDS Connector for support 1-CH LVDS panel • 1 TV Out Header for SCART und D-terminal (Optional) • 1 Video Pin Connector for VGA Exit CCIR656/601, Video Entrance and SMBUS • 1 PS2 Mouse/Tastatur Header • 2 SATA Connectors • 2 Fan Pin Connectors for CPU and System Fan • 1 ATX Power Connector
BIOS	• Award BIOS • LPC 4/8Mbit Flash Memory
Für Betriebssysteme	• Windows 2000/XP, Linux, Win CE, XPe
Management	• Wake-on-LAN, Keyboard-Power-on, Timer-Power-on • System power management, AC power failure recovery
Betriebstemperatur	• 0 ~ 50 ° C
Luftfeuchtigkeit	• 0% ~ 95% (relative humidity; non-condensing)
Formfaktor	• Mini-ITX (6-layer) • 17 cm x 17 cm
