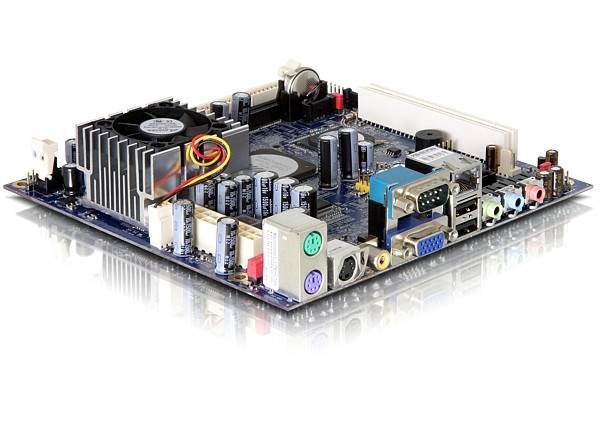

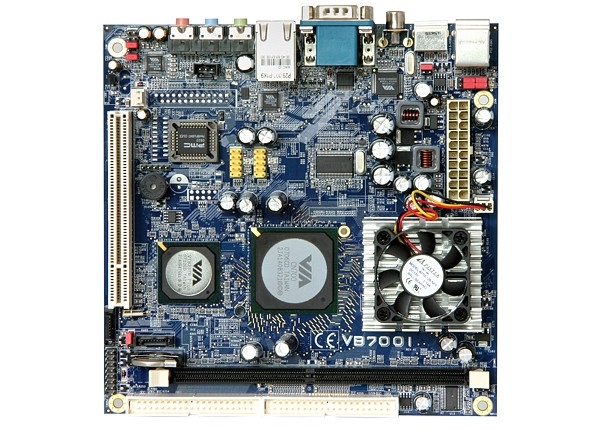

| Modelo |
• VIA VB7001G |
| Processador |
• VIA C7®-D 1.5GHz – Socket NanoBGA2 |
| Chipset |
• VIA CN700 North Bridge |
| • VIA VT8237R Plus South Bridge |
Memoria
|
• 1 DDR2 400/533 DIMM socket |
| • Up to 1GB memory size |
| VGA |
• Integrated VIA UniChrome Pro AGP graphics |
| with MPEG-2 decoding acceleration |
Slots Expansão
|
•1 PCI slot |
| Onboard DIE |

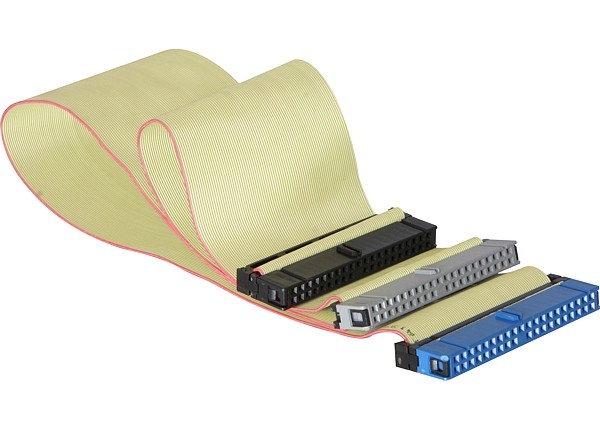

• 2 UltraDMA 133/100/66 connectors |
| Onboard Serial ATA |
• 2 SATA connectors |
| Onboard LAN |
• VIA VT6103L 10/100Mbps Ethernet PHY |
| Onboard Audio |
• VIA VT1618 8 channel AC'97 Codec |
| Onboard TV Out |
• VIA VT1622AM SDTV Encoder |
Conectores Onboard I/O
|
• 2 USB connectors for 4 additional USB 2.0 ports |
| • 1 FIR connector |
| • 1 SMBus connector |
| • 1 S/PDIF |
| • 1 CIR connector (Switchable for KB/MS) |
| • 1 Front-panel audio connector |
| for line-out and mic-in |
| • 2 Fan connectors for CPU and System fans |
| • 1 ATX power connector |

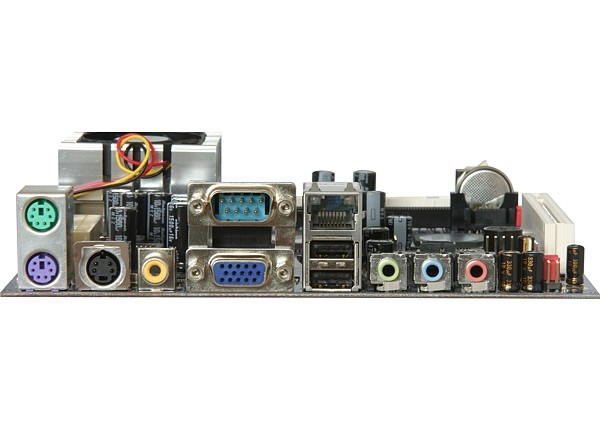

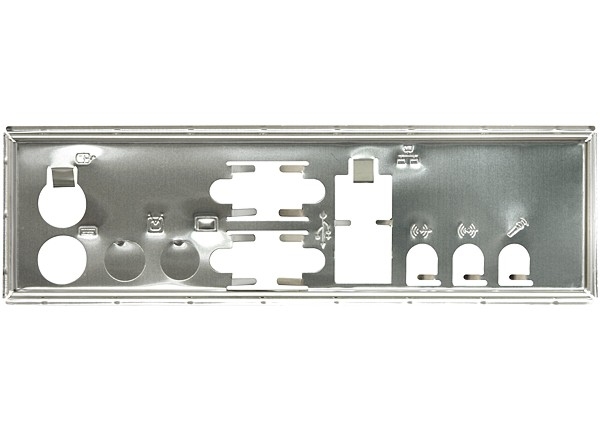

| Painel traseiro I/O |
• 1 PS2 mouse port |
| • 1 PS2 keyboard port |
| • 1 RCA port for composite TV out |
| • 1 Serial port |
| • 1 VGA port |
| • 1 RJ-45 LAN port |
| • 2 USB 2.0 ports |
| • 3 Audio jacks: line-out, line-in and mic-in (5.1 Support) |
| BIOS |
• Award BIOS |
| • LPC 4Mbit flash memory |
| Management |
• System voltage monitoring |
| • CPU voltage monitoring |
| • Timer-power-on, Wake-on-LAN/KB/MS, |
| • AC power failure recovery |
| Temperatura |
• 0°C~ 45°C |
| Humidade |
• 0% ~ 95% (relative humidity ; non-condensing) |
| Formato |
• Mini-ITX (4 layers) |
| • 17 cm x 17 cm |
|
|
